M05 KW7-0E solder terminal micro switch / micro switch for coffee machine / micro switches 16a 250v

FOB Reference Price:Get Latest Price
US $0.01-0.3 / Piece | 1 Piece/Pieces micro switches 16a 250v (Min. Order)
Supply Ability:
990000000 Piece/Pieces per Week micro switches 16a 250v
Port:
Ningbo, Shanghai, Wenzhou
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Abbeycon
Model Number:
KW7-0E
Max. Current:
1A~16A
Max. Voltage:
250VAC
Operating Temperature:
-25℃~+80℃
Protection Level:
IP40
Certificate:
CE,Rohs,CQC
Color:
Black/White/Green/Red
Material:
Bakelite/Plastic
Terminal:
Solder/Wired
Lever:
Can be Long/Short/None/Roller/Arc
contact Resistance:
30 mΩ max
Wired terminal:
Available
Customzied switch:
Available
OEM&ODM:
Available
Product type:
micro switches 16a 250v
Packaging & Delivery
Packaging Details
micro switches 16a 250v
1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton
2: Upon customers' request, but the price is different with neutral packing
3: Carton size: 30*25*30
4: 50 pcs/box,10boxes/carton

  micro switches 16a 250v 5*20mm fuse holder latching button switch

Product Description

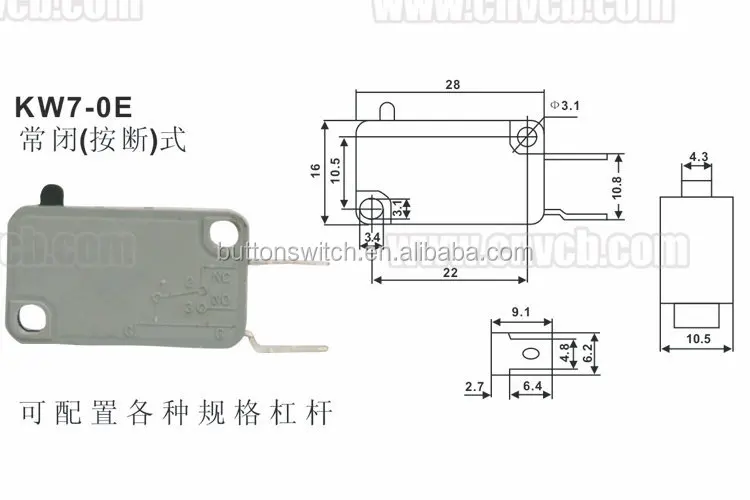

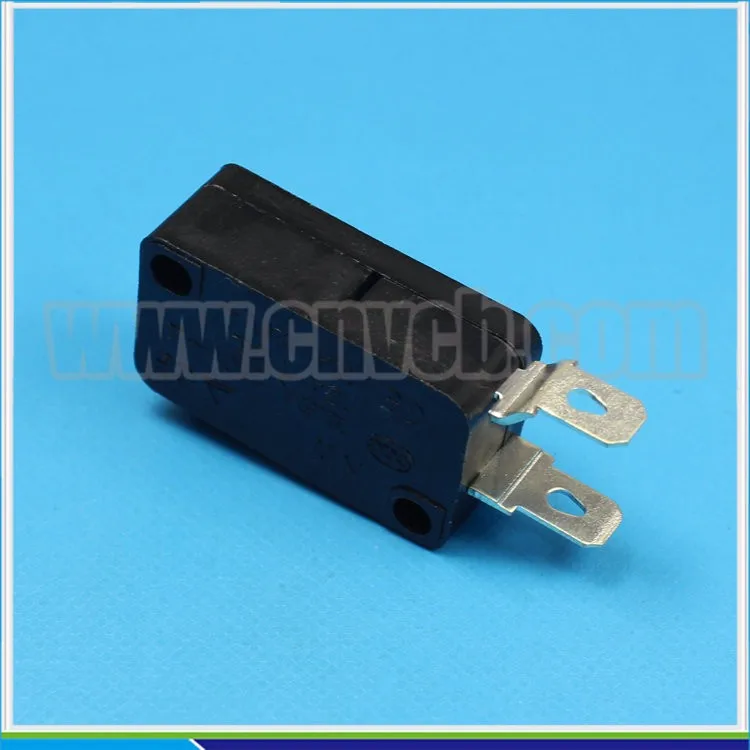

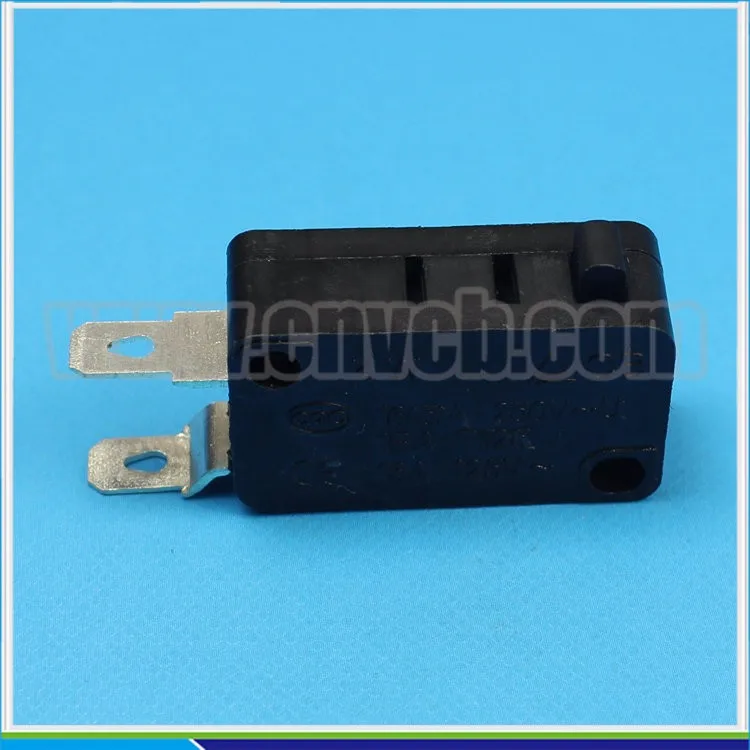

KW7-0E solder terminal micro switch / micro switch for coffee machine / micro switches 16a 250v

Features:

Rating1A~16A 125/250VAC
Practical temperature range-25 to 85 degrees Celsius
Operating frequencyMechanical: 60 cycles/min;
Electrical: 25cycles/min
Insulation resistance≥100 MΩ(500Vdc)
Contact resistancy≤30 mΩ(initial value)
Test VoltageBetween terminals of the same polarityAC 1000V,50/60Hz,1min
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal partsAC 3750V,50/60Hz,1min

LifeMechanical≥1,000,000cycles
Electrical≥100,000cycles
[Tips] All information above is for reference only; Welcome to contact us for detailed description for each item. Our individal items can be found on website link: http://buttonswitch.en.alibaba.com/productgrouplist-801232537/Micro_switch.html

 1. Adopt thermosetting plastic or thermoplastic;Long electrical and mechanical life.

2. Small contact gap, snap action, high sensitivity and small operating travel;

3. Different kinds of levers;

4. Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus.  micro switches 16a 250v

Different kinds of micro switches and other switches from us:



   micro switches 16a 250v

Packaging & Shipping



Packing:

 1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton

2: Upon customers' request, but the price is different with neutral packing

3: Carton size: 30*25*30

4: 50 pcs/box,10boxes/carton

  micro switches 16a 250v

Shipping:

1.  DHL, EMS, TNT, Fedex, UPS and others international express.

2. By air or by sea. 5 micro switches 16a 250v *20mm fuse holder



Our Services

 Payment term:

1.Payment: Paypal, Western Union, Aliexpress, T/T
2.Port of loading: Ningbo,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 1-30 days according to order quantities.    micro switches 16a 250v

Feedback:

       We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help.   micro switches 16a 250v 5*20mm fuse holder

FAQ



Why Us?

1. Quality assurance: All the products will go through lots of tests carefully before dispatch
2. Competitive production capacity and fast shipping
3. Manufactuer's price: Factory direct sale, most competitive price.

  micro switches 16a 250v

Our main products:

        We manufacture and provide all kind of micro switch and other electronic switches, like limit switch, toggle switch,push button switch,rocker switch,push switch,tact switch,slide switch,fuse holder and so on.

micro switches 16a 250v

Company Information

Our company Introduction:

1. Near 10-year experience in manufacturing of micro switch and other electronic switches more than 8 years' experience on export.

2. All of material passed ROHS and Reach certification.

3. Manufacturing process is comply with ISO9001.

4. We supply the good payment terms such as paypal, TT before shipment for our cutomers.

5. We can provide free samples for customer to test it.

6. Samples delivery time is within 24 hours.

7. The fast leading time is 3-10days( 1kpcs-100kpcs), 25-30days( 100kpcs-1000kpcs)

8. Factory info: Located in Wenzhou City, Zhejiang Province.

9. OEM Service and Buyer Label Offered.

10. Above 30 production lines.

11. Among 300 employees, including 6 R&D Engineer(s), 30 QC Technicians.

5 micro switches 16a 250v *20mm fuse holder



  micro switches 16a 250v

 Welcome to contact us for details:

ATTN: Power

Yueqing Abbeycon Electric Co., Ltd.

Tel: 0086-577-89008222  (24 hours' service)

Skype: cccmtth

E-mail: power(at)cnvcb.com

micro switches 16a 250v main products: limit switch,fuse holder,toggle switch, micro switch,push button switch, anti-Mavandal switch, metal switch, stainless steel switch, LED illuminated switch, waterproof switch IP67 switch,  IP68 switch, 12mm switch, 16mm switch, 19mm switch, 22mm switch, 25mm switch, 28mm switch, 30mm switch, best quality cheapest switch, China best switch, wenzhou electronic switch, electrical switch
